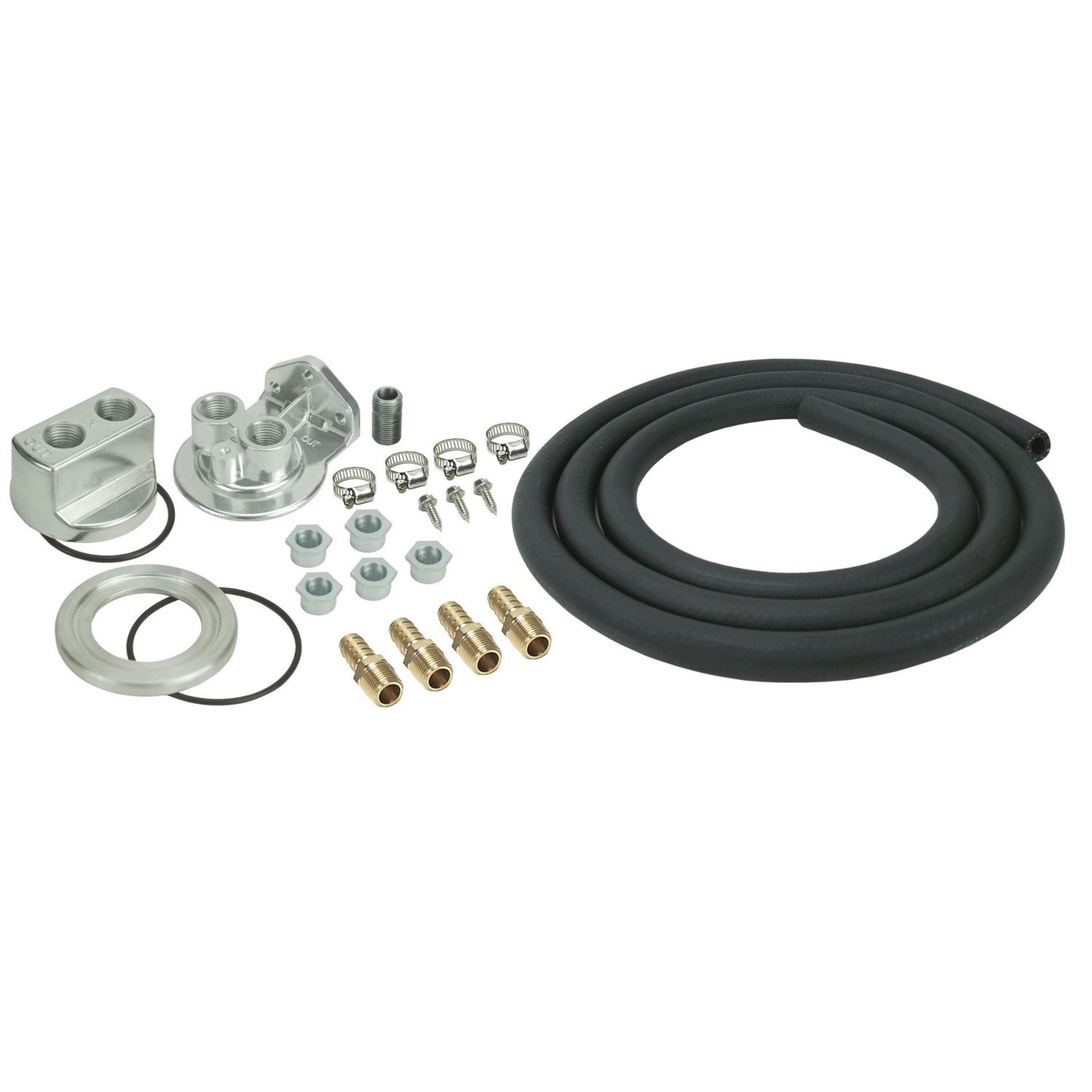

Universal Single Mount Ports Up Universal Oil Filter Relocation Kit Holden/Ford

Derale 15748 Universal Oil Filter Relocation Kit with 3/4-16", 13/16-16", 18x1.5mm, 20x1.5mm, 22x1.5mm Thread adaptors Ports Up 1/2" Npt.

This Universal single filter kit allows oil filter to be relocated to a convenient, easy-access location. Includes a high quality, die cast aluminum 1/2" NPT ports up filter mount and a 1/2" NPT ports spin-on adapter with most everything you need for an easy installation. Filter mount uses Fram PH8A Oil Filter or equivalent. Designed to fit most passenger vehicles on the road today with 2 1/2" to 3 1/2" oil filter landings. Spin-on adapters provide external oil lines to allow the addition of an engine oil cooler and/or remote filter mount, installing at the stock engine oil filter location. This all-new version has a billet style look and has an ultra-bright, polished appearance.

Features:

Allows for oil filter to be moved to a more convenient location.

Faster and easier filter changes.

Ideal for engine swaps.

Increases oil capacity.

Single ports-up style filter mount.

Cast from high quality aluminum.

10 ft 1/2" OEM spec hose provided.

Filter mount uses Fram PH8A or equivalent filter.

Universal Spin-On Adapter with 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm thread sizes

Specifications:

Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm.

Adapter thickness: 1-3/4" or 2".

Adapter inlet size: 1/2" NPT.

Remote filter landing: 2-1/2", 2-3/4" or 3-1/2".

Remote filter thread size: 3/4"-16.

Remote filter inlet size: 1/2" NPT.

Hose size: 1/2".

Hose length: 10'.
