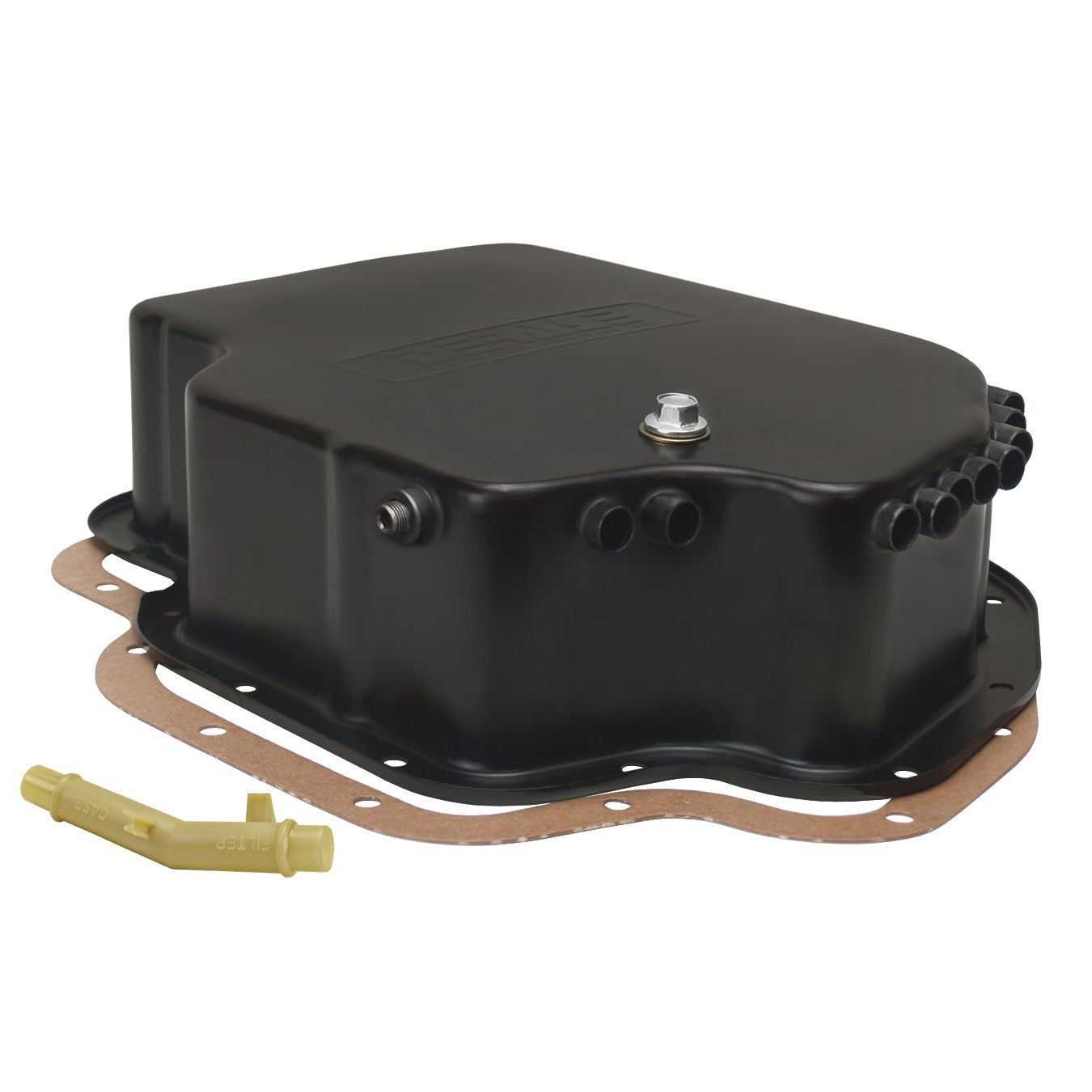

Transmission Cooling Pan GM Turbo Hydro TH400 4.5" Deep + Tubes Derale 14202

Derale's TH400 Deep Transmission Cooling Pan #14202 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. With brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Pan Dimensions: 16 1/2" Length x 12 13/16" Width x 4 1/2" Height. Drain plug adds 1/4" to height. Tube depth: 3-1/16". Extra capacity from Standard. OE pan: Usa 3 qts. 8 oz. Extra capacity from Deep OE pan: Usa 1 qt. 3 oz. Temp bung size: 1/8" NPT. Drain plug size 1/2"-20. Replacement drain plug Derale Part Number 14000.

Heavy gauge stamped steel construction. Two stage heat dissipating black finish. 1/8" NPT temperature sender port. Reduces fluid temperatures up to 50'F. Increases fluid capacity by up to Usa 3 qts. 8 oz. Patented turbulator cooling tubes add heat transfer capability. Magnetic drain plug with increased magnetic strength and rubber/steel washer. Use Derale Part Number 14002 filter pickup tube if needed.
