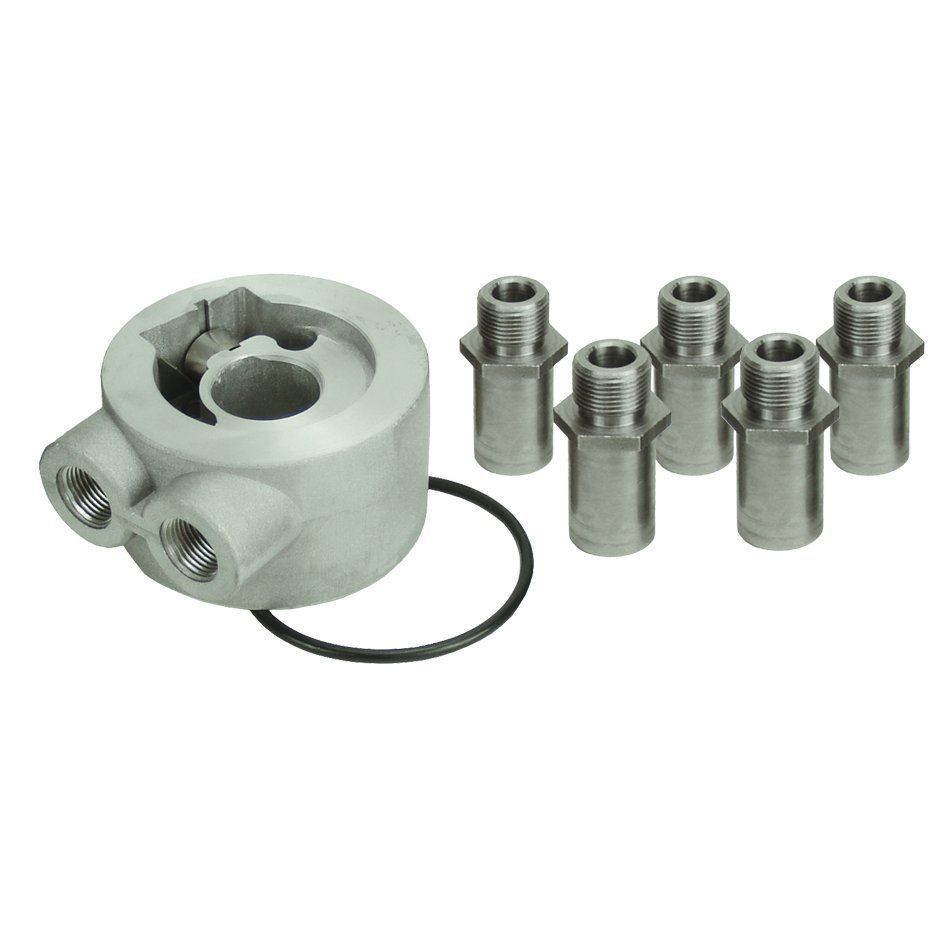

Thermostatic Universal Engine Sandwich Adaptor 5 Thread Sizes Derale 25702

Derale 25702 Thermostatic Universal Engine Sandwich Adaptor.

This universal kit is made using a high quality die-cast aluminum and includes a 180'F thermostatic sandwich adapter with 3/8" NPT ports with an O-ring diameter of 2 3/4", this adapter provides external oil lines to allow the addition of an engine oil cooler. It installs between the stock engine oil filter landing and the oil filter.

Specifications:

Sandwich Adapter type: B.

Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm.

Adapter o-ring size: 2-3/4".

Adapter thickness: 1-3/4".

Adapter inlet size: 3/8" NPT.

Features:

Provides external oil lines for oil coolers without relocating the factory oil filter.

Cast form high quality aluminum.

Maintain factory equivalent oil filter.

Type B Sandwich Adapter with 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm thread sizes, fits most applications *see application guide for specific applications.

Includes sandwich adapter, sleeve nuts & O-ring.
