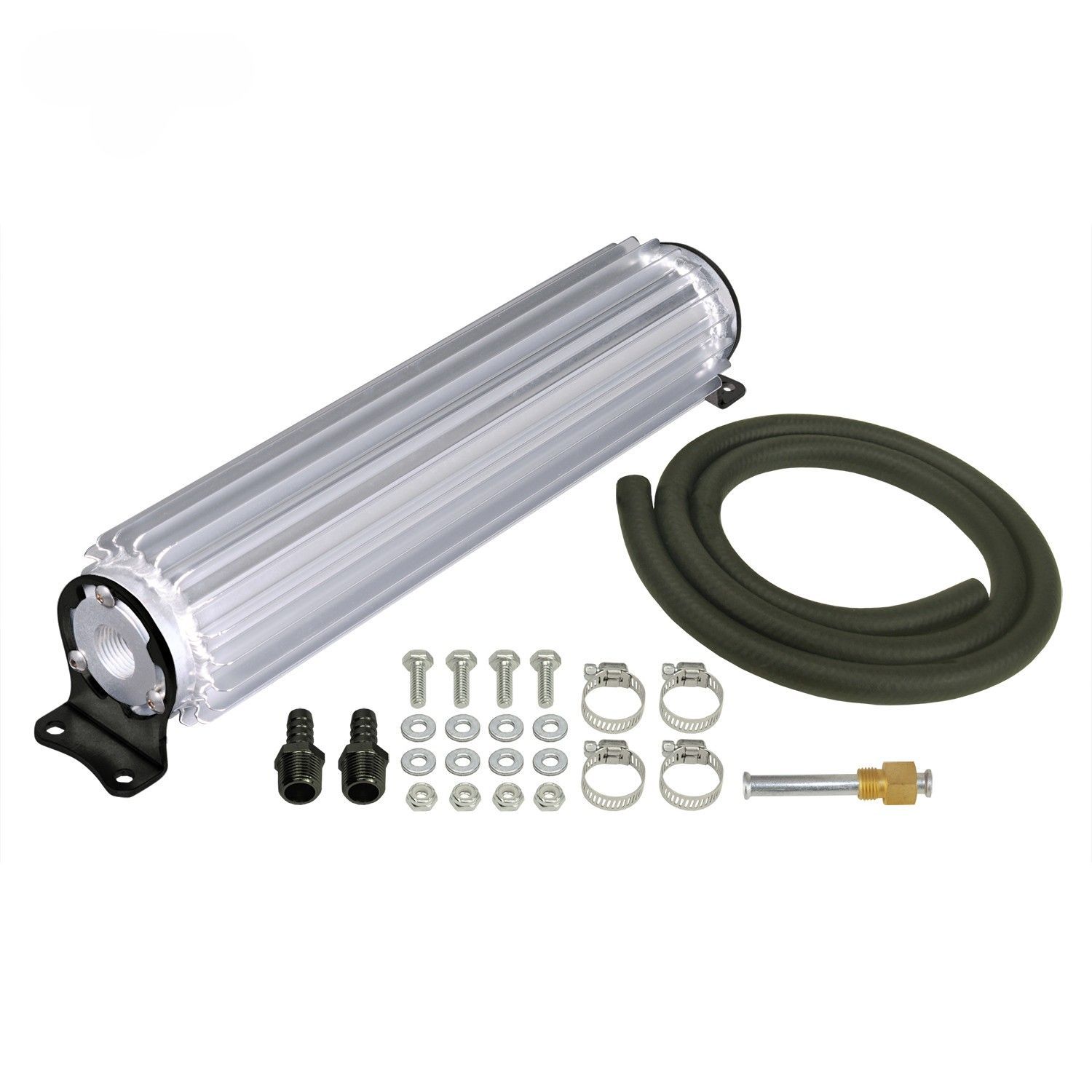

Single Pass Heat Sink Transmissions Cooler Kit 14-1/4" x 3-1/4" NPT Inlet 13253

Heat sink cooler assemblies have removable brackets that allow the cooler to be clocked for easier installation. These Single-pass Heat Sink coolers use both external and internal fins to maximize heat transfer. With their sleek 3" diameter they can be mounted in a variety of locations and the universal design can be used to cool a wide variety of components. Clear Anodized coolers are perfect for fuel and power steering applications. Kit includes high pressure/high temperature hose, Insta-Dapt radiator adapter, hose Barbs fittings and mounting hardware.

Features:

- Aluminum heat sink design Features internal and external heat dissipating fins for high heat transfer

- Stamped Turbulator has been added for increased efficiency

- Removable brackets allow cooler to be clocked

- Clear anodized finish

- Brackets are black anodized

- Hardware kit includes aluminum hose barbs fittings, hose, insta-dapt radiator adapter and mounting hardware

- Compact 3" diameter to fit most frame rails

- Single pass cooler design

- 1/2" NPT inlets

- 1/2" NPT to 3/8" hose barbs included

- All Derale coolers are rated at 250 psi working pressure, 300 psi burst strength

Specifications:

- Cooler style: Heat Sink

- Construction: Aluminum

- Clear Anodized

- Inlet/Outles Port Size: 1/2" NPT

- Fitting size: 1/2" NPT to 3/8" hose barb

- Height: 3-1/4"

- Width: 3"

- Hose size: 3/8"

- Hose length: 4'
