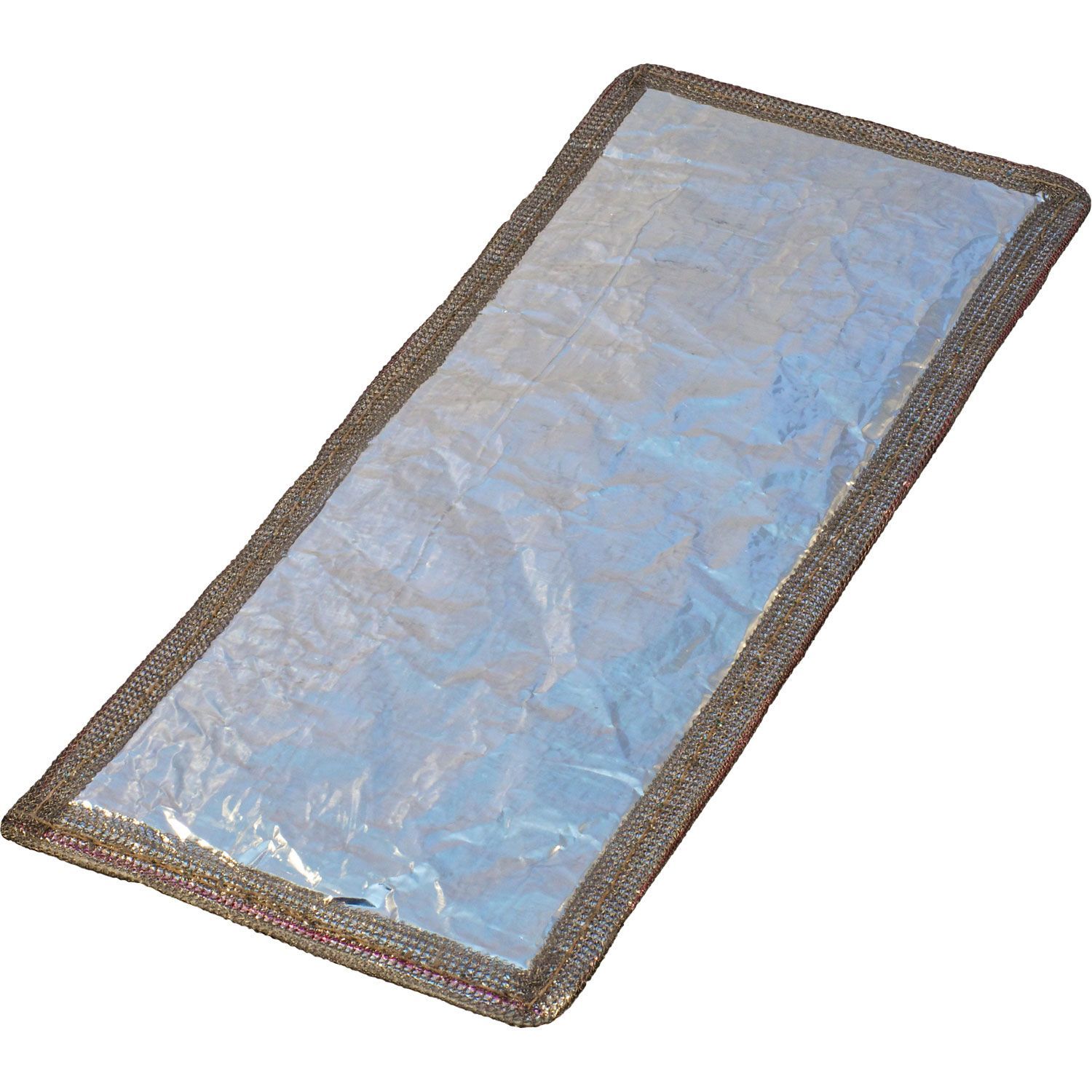

Reflecta-A-Shield Heat Shield 150mm x 355mm withstand 535'C 1,000'F Continuous

Reflecta-A-Shield Heatshield 150mm (6 Inch) x 355mm (14 Inch).

Reflecta-A-Shield known as Thermaflect Shield is a universal flexible heat shield that deflects heat away and is rugged enough to be used for almost any radiant heat application.

Features:

-If used with a 25mm (1") air gap between the heat source and Thermaflect Shield and with good airflow, this heatshield can reflect over 90 percent of radiant heat.

-6mm (1/4")-thick BioCool thermal-barrier inner pad sandwiched between heavy-duty foil, bound and sewn together with a stainless steel mesh at the edges.

-BioCool is a non-caustic, non-flammable thermal barrier. It does not cause itching and won't smoke or smell the first time it is heat-cycled.

-By binding the edges with this mesh, we created greater flexibility and a more rugged product.

-This heatshield withstands 535'C (1,000'F) continuous radiant heat, and 260'C (500'F) direct when in direct contact.

Thermaflect Shield is intended for wrapping around air boxes, electrical boxes and air conditioning components or is used to shield radiant heat from catalytic converters, mufflers and DPF, and on the bottom of the floorpans.

It can be fitted using our Stainless Steel Locking Thermal Ties our Part No 108004 for 200mm long pack of 4, or Part No 114004 for 355mm long pack of 4, or using rivets or screws
