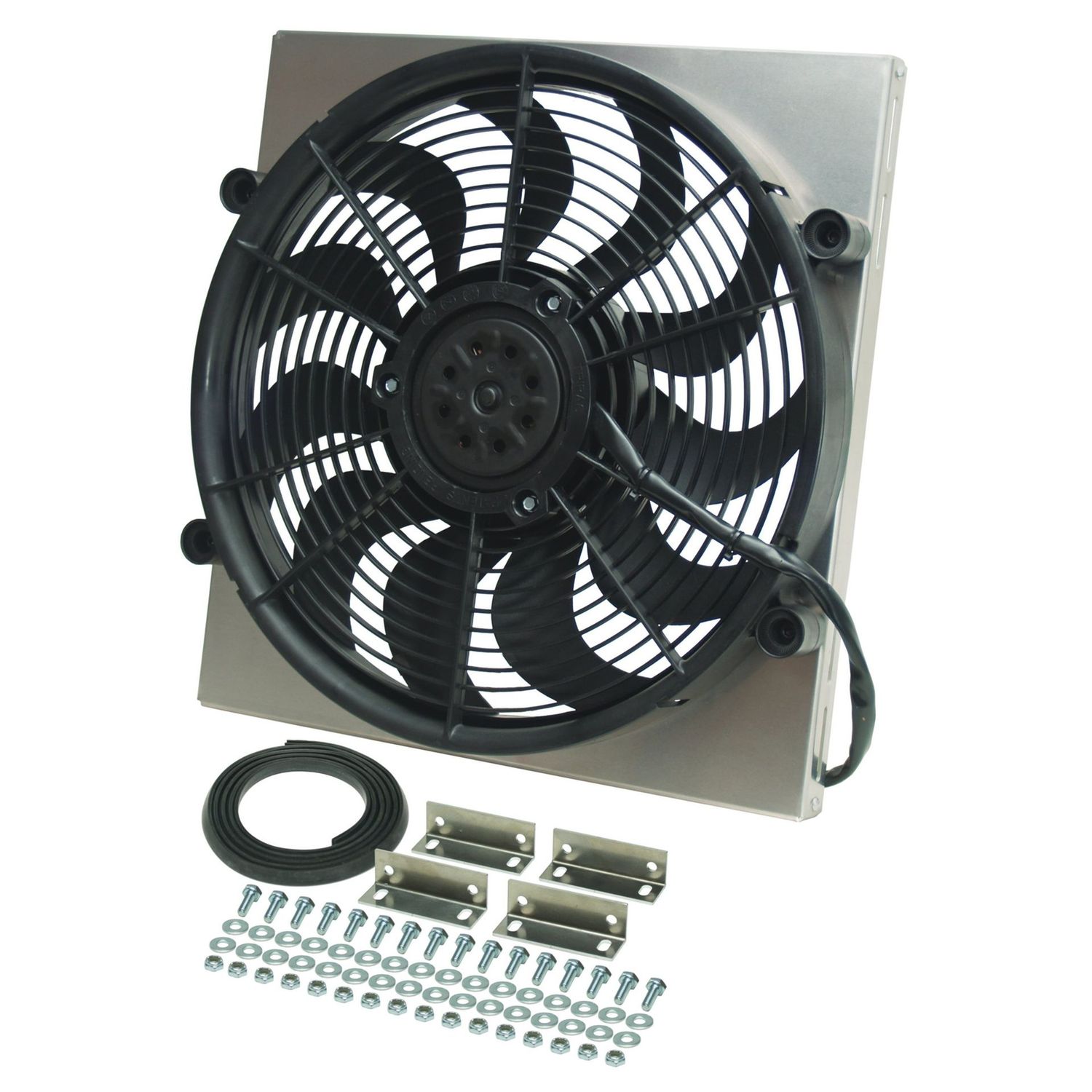

High Output Single 17" Electric Radiator Fan Alum Shroud Kit-16-3/4"x17-5/8"x3"
Powerpack - High Output Single 17'' Electric Radiator Fan/Aluminum Shroud Kit.
This High Output Single Radiator Fan is part of the High Output Aluminum Shrouded Fans Series designed with popular applications in mind.� This assembly measures 16-3/4" wide by 17-5/8" top to bottom and only 3" thick overall to offer an adjustable yet precision fit.�� The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price.� Using a 17" high output 2 speed fan offering 2400 CFM to create the most airflow possible in a compact size. Shroud comes equipped with two air pressure relief vents. Mounting is Adjustable. Puller (engine side) applications only. Kit includes adjustable mounting brackets and complete mounting hardware.
Features:
Designed for primary cooling.
Raw aluminum shroud construction can be polished, painted or anodized.
High Output 265 watt motor.
2400 CFM.
Ultra-quiet patented skewed blade design.
Puller (engine side) applications only.
Kit includes adjustable mounting brackets and complete mounting hardware.
Specifications:
CFM high/low: 2400/1800.
Amp draw high/low: 23.5/17.4.
Width:16-3/4".
Height: 17-5/8".
Depth: 1-1/8".
Overall depth: 3".
Mounting Hole(s) center to outside edge: 1/2".
Mounting: Adjustable.
