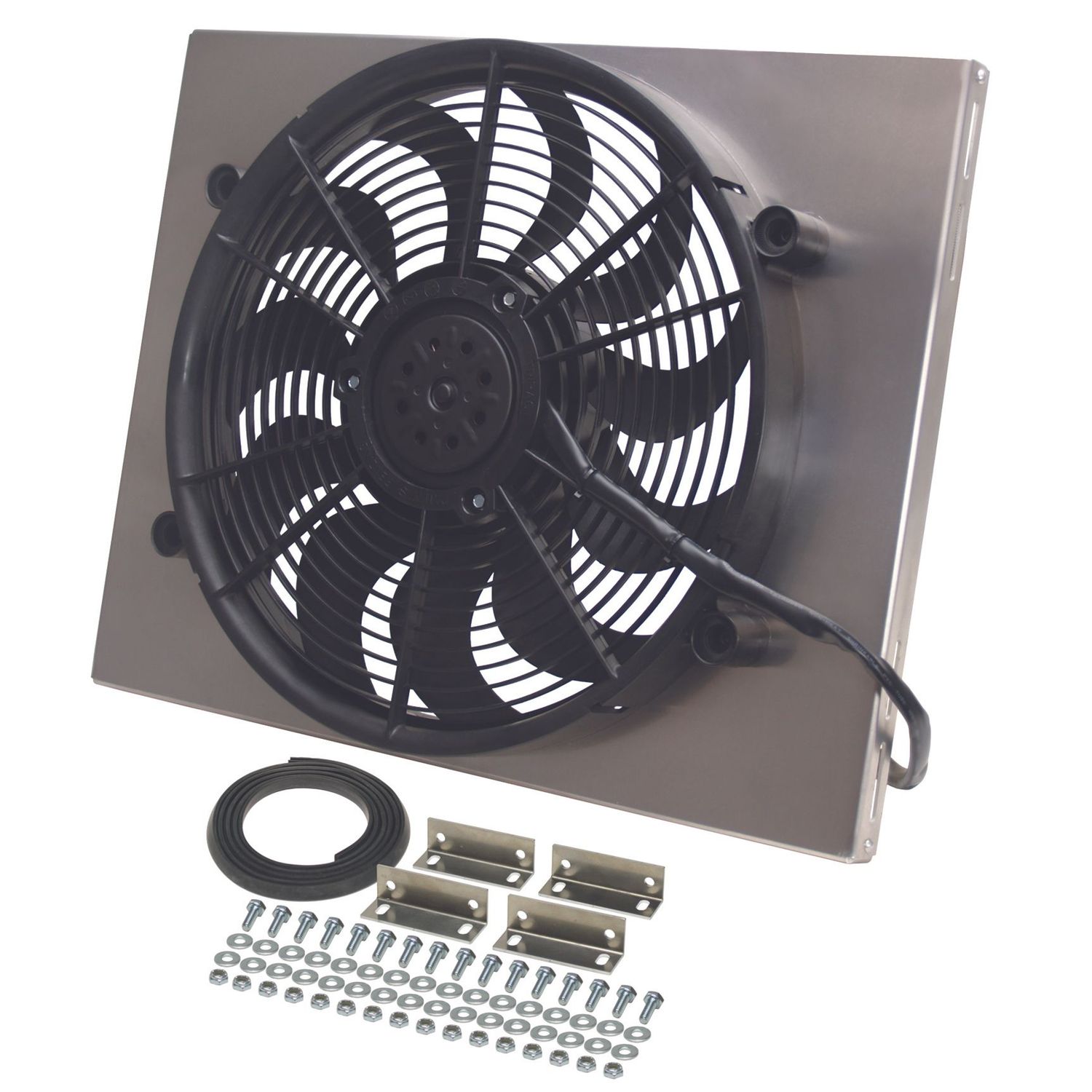

High Output 17" Electric Radiator Fan Alum Shroud Kit-22 1/4''Wx17 5/8'"Hx3"D
Powerpack - High Output Single 17'' Electric Radiator Fan/Aluminum Shroud Kit.
This High Output Single RAD Fan Powerpack is part of the HO Aluminum Shrouded Fan Series designed with popular applications in mind. This assembly measures 22 1/4" wide by 17 5/8" top to bottom and only 3" thick overall to offer a precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 17" high output two-speed fan is one of the best in our line-up offering 2400 CFM when on high to create the most airflow possible in a compact size.
Features:
Designed for primary cooling.
Raw aluminum shroud construction can be polished, painted or anodized.
High Output 265 watt motor.
2400 CFM.
Ultra-quiet patented skewed blade design.
Puller (engine side) applications only.
Kit includes mounting brackets and complete mounting hardware.
Specifications:
CFM high/low: 2400/1800.
Amp draw high/low: 23.5/17.4.
Width:22 1/4".
Height: 17 5/8".
Depth: 1-1/8".
Overall depth: 3".
Mounting Hole(s) center to outside edge: 1/2".
