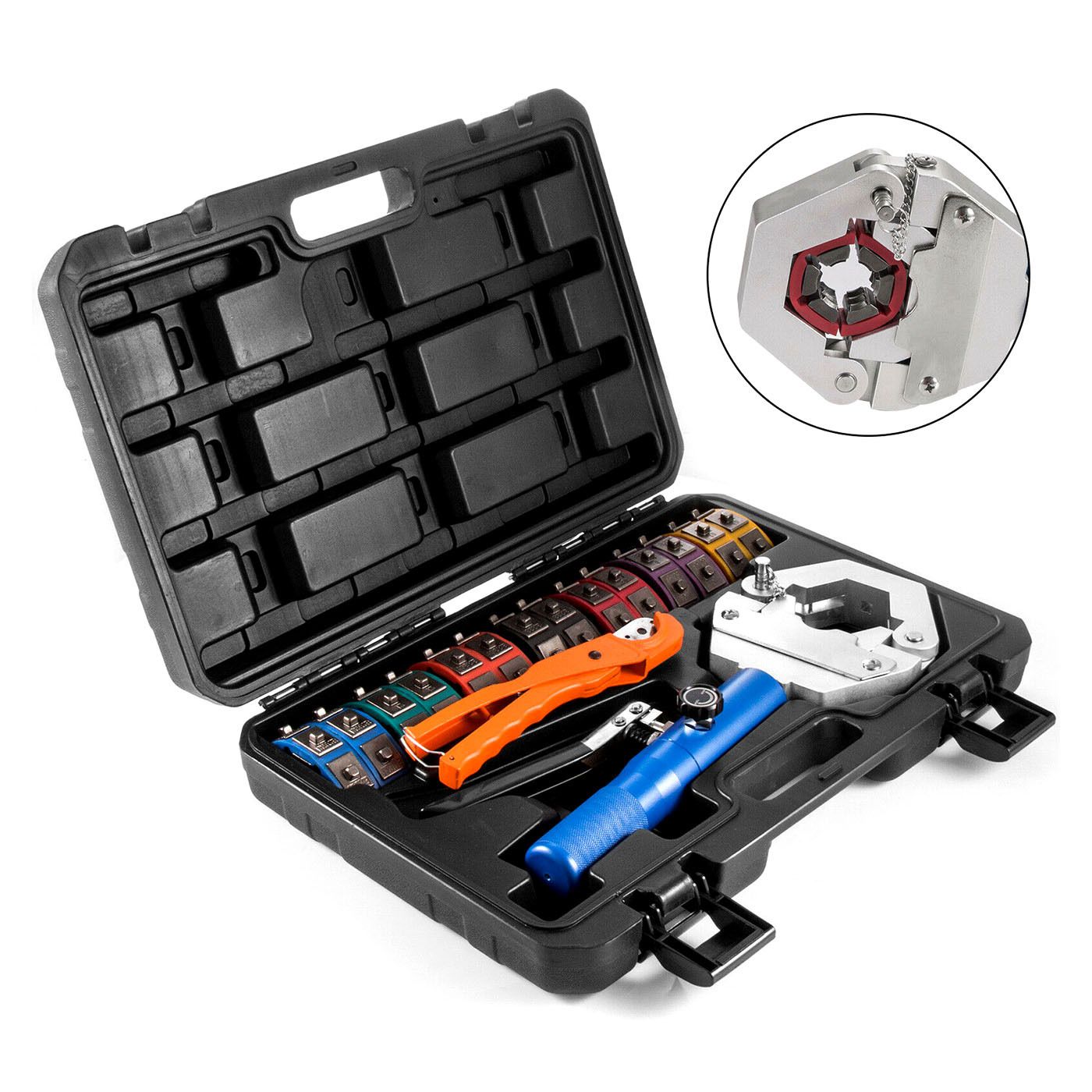

Hydra-Krimp makes crimping barbed and beaded fittings as easy as 1 – 2 – 3! The lightweight hand-held hydraulic press is extremely portable and ideal for shop and field applications. The kit comes in a custom molded case with a complete set of dies covering hose sizes #6, #8, #10, #12 and reduced barrier #6, #8, #10 and #12. The dies snap quickly into the press fixture requiring no pins or screws



Key Features:

IDEAL FOR SHOP AND FIELD APPLICATIONS, the mobility of the 71500 allows the technician to work directly to repair or fabricate a/c hoses on the vehicle

HYDRAULIC BODY CREATES OVER 10,000 PSI OF PRESSURE allowing technicians to recrimp existing hose assemblies that might have a leak

SEVEN DIES ALLOW FOR AN OE DESIGN 6 SEGMENTED CRIMP to ensure no leaks

EASY TO USE HYDRAULIC HAND-HELD PUMP crimps the hose fitting in under 10 pumps



7pcs Dies Set:

Standard Hose:

#6 (5/16”)-Purple

#8 (13/32”)-Red

#10 (1/2”)-Yellow

#12 (5/8”)-Green

Reduced Barrier Hose:

#6(5/16”)-Black

#8(13/32”)-Purple

#10(1/2”)-Orange

#12(5/8”)-Blue



Package Includes:

1x AC Hose Crimper

7x Dies

1x Carrying case



Package Size: 46*37*12cm



Operating Instructions:

1. Remove pin and loose the handle till you can "Open" top yoke

2. Select correct die set

3. Insert the die into joke

4. Position fitting and hose in the crimper and close the yoke.

5. Insert pin securely

6.Turn Body of tool clock wise until dies are snug against hose fitting

7.Turn hydraulic valve to "closed "position

8. Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop

9. Once crimp is complete, turn hydraulic valve to OPEN position



Note:

1.Be Sure To Select Correct Size Die Set to avoid Leakage or Failure Of Crimping!

Insert Dies Into Yoke.

Position Fitting And Hose In Crimper And Close Top Yoke.

Insert Pin Securely.

2. Make Sure Pin Snaps Securely Into Place Before Crimping Process Is Started

Turn Body Of Tool Clockwise Until Dies Are Snug Against Hose Fitting.

Turn Hydraulic Value To CLOSED Position.

Pump Handles To Crimp Fitting Onto Hose. Continue Pumping Until Handle Comes To A Stop.

3. Place The Body Of The Tool Against A Solid Body To Create More Leverage During The Crimping Process.

Once Crimp Is Complete, Turn Hydraulic Valve To OPEN Position.

Turn Body Of Tool Counter Clockwise Until Top Yoke Can Be Rotated Away From Piston Portion Of Yoke.

Remove Holding Pin And Open Yoke.

Remove Hose Assembly.
