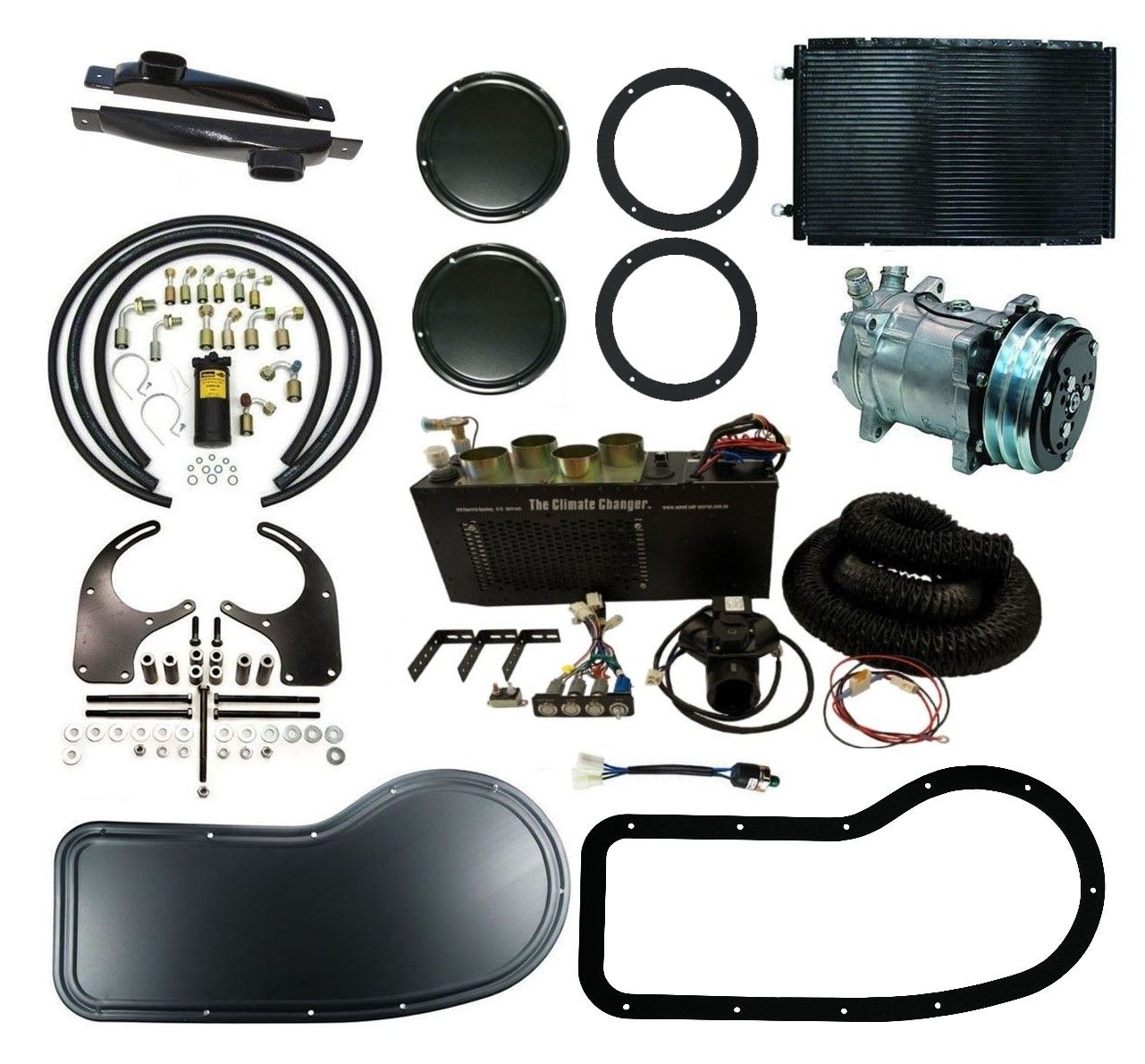

HOLDEN HQ-WB AIR CONDITIONING HEAT/COOL/DEFROST COMPLETE SYSTEM (ELECTRIC HEAT)

HOLDEN HQ-WB AIR CONDITIONING HEAT/COOL/DEFROST COMPLETE SYSTEM (ELECTRIC HEAT)

*NEW*T6061 Aluminium construction

Unit dimensions

Width = 540mm (Not including mounting brackets)

Maximum height = 268mm from the top of the TX Valve to the lowest point of the sump

Depth = 196mm Front to back

This unit has four 63mm outlets on the top of it.

The unit will come with a 4 button control panel with 19mm dia switches, Length 114mm x Height 32mm.

Controller will be to suit panel mounting with 4 x functions

1. FAN = 2 speed fan switch lights up with a white LED halo

2. A/C = A/C on button features a blue LED halo

3. HEAT = Heater button features a red LED halo (Electric heater draws 35A).

4. DEFROST = Defrost ‘Y’ Diverter features a yellow LED halo

It also comes with 4 metres of 63mm flex duct, a ‘Y’ Air diverter with servo controlled butterfly valve that you can mount away from the unit to control defrost airflow to the windscreen.

Current draw with the heater on low = 24A , heater on high 37A (This unit pumps out good heat, all electric, no engine water required).

This unit needs to be run in a vehicle with an alternator operating as the carbon fibre heater elements require as close to 14v as possible to reach their operating temperature.  Bench testing with just a battery will give terrible results as the elements will not be receiving anywhere close to correctoperating voltage.
