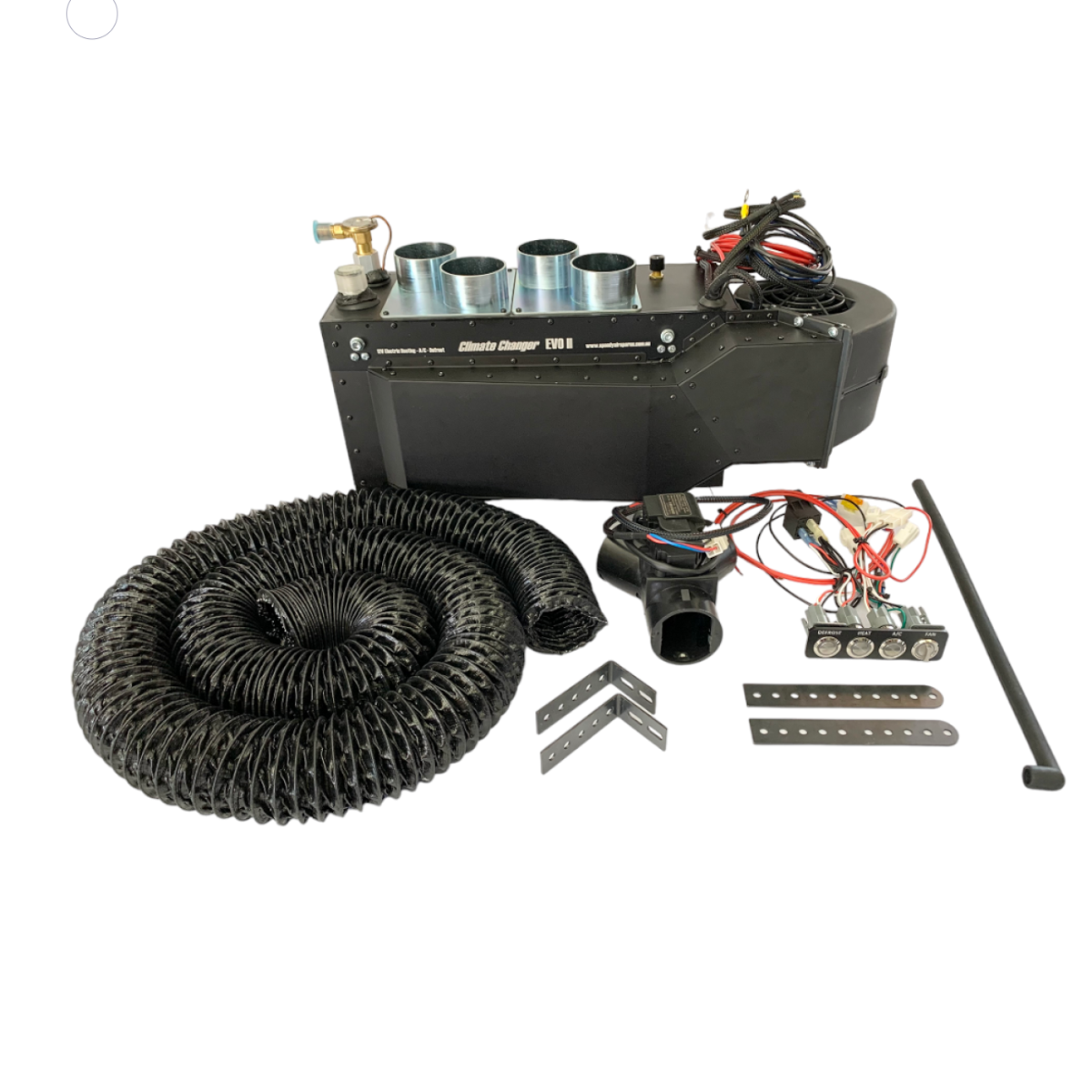

EVO II Climate Changer’ (540mm wide) Air conditioning with 12V Heating NO ENGINE WATER REQUIRED - CC2000-BF

The Climate Changer EVO II

The Climate Changer series of units that we build are the only units available on the market that is equipped with A/C and 12v Electric Heating.

Designed and built in Bundaberg, Queensland

Anodized T5052 Aluminium construction

Please check dimensions carefully to see if it will fit behind your dash.

Unit dimensions

Width = 540mm (Not including mounting brackets in these dimensions)

Maximum height = 268mm from the top of the TX Valve to the lowest point of the sump

Maximum depth = 196mm Front to back

This unit has four 63mm outlets on the top of it.

The unit will come with a 4 button control panel with 19mm dia switches, Length 114mm x Height 32mm.

Controller will be to suit panel mounting with 4 x functions

1. FAN = 2 speed fan switch lights up with a white LED halo

2. A/C = A/C on button features a blue LED halo

3. HEAT = Heater button features a red LED halo (Electric heater draws 45A).

4. DEFROST = Defrost ‘Y’ Diverter features a yellow LED halo

Solid barrel fan airflow 580 m3/h
