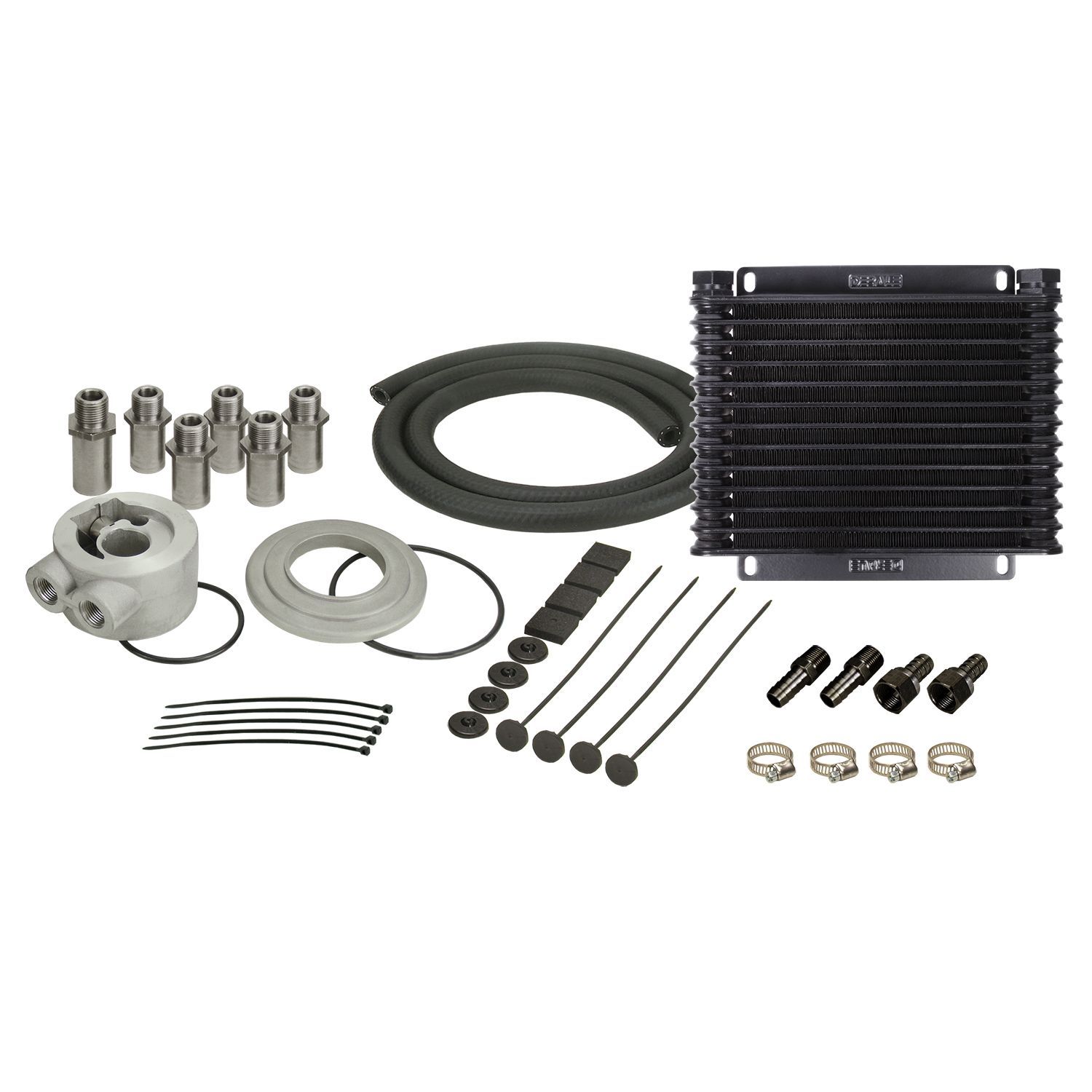

Derale Plate & Fin 13 Row Engine Oil Cooler Kit with Sandwich Adapter 15405

Derale 15405 A step up from the popular tube and fin design this aluminum plate and fin-based oil cooler kit not only reduces oil temperatures to help extend the life of lower end components and oil life, it also helps reduce coolant temperatures in the radiator and cooling system. This universal kit includes engine sandwich adapter, hose and everything you need to install on most passenger vehicles on the road today.

Specifications

Cooler style: Plate & Fin

Cooler construction: Aluminum

Cooler inlet size: 1/2" NPT

Width: 9-3/4"

Height: 8-7/16"

Depth: 1-1/4"

Inlet dim: 8-1/2"

Mounting: 6-11/16" x 7-9/16"

Sandwich Adapter type: A

Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm

Adapter o-ring size: 2-3/4" or 3-1/2"

Adapter thickness: 1-3/4" or 2-1/8"

Adapter inlet size: 3/8" NPT

Hose size: 1/2"

Hose length: 10'

Rated functional at 250psi working / 300psi burst strength

Features

Can reduce engine oil temp up to 50'F

Helps reduce coolant temperatures

Extends engine life

Heavy duty Plate & Fin style cooler

Type A Sandwich Adapter fits most applications *see application guide for specific applications

Complete hardware kit included

All Derale coolers are rated at 250psi working pressure and 300psi burst strength
