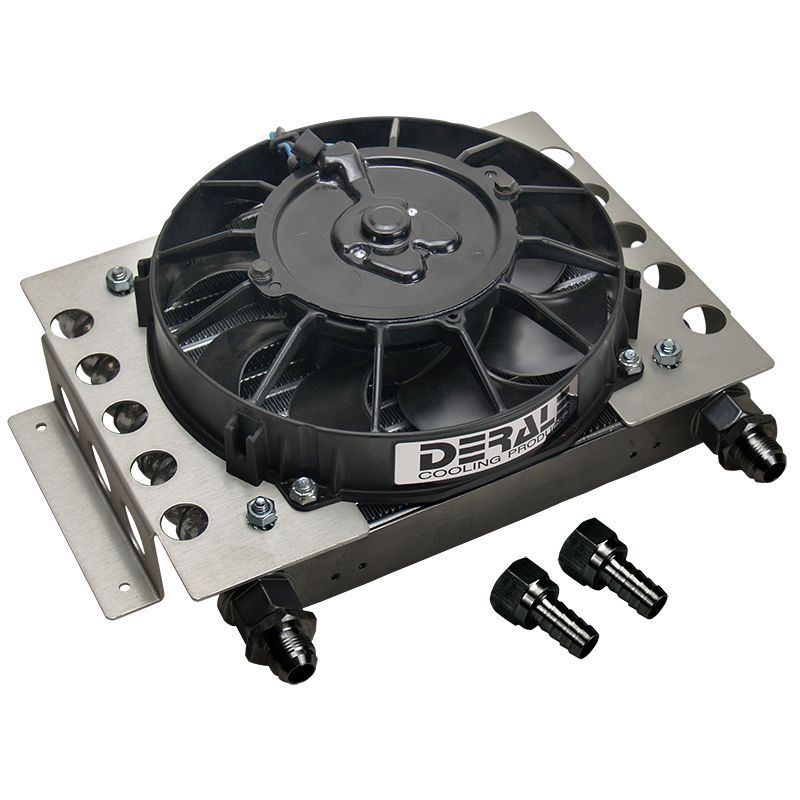

Derale Atomic Cooler Plate & Fin 15 Row 12-3/4"x9-3/8"x4-5/16" -8AN 15850

Derale 15850 A step up from Tube & Fin type coolers, this Atomic-Cool remote fluid cooler can be mounted anywhere space permits, making it a popular addition for performance cars, hot rods, muscle cars and trucks.

A heavy duty plate and fin cooler coupled with a Tornado fan and aluminum brackets, it comes with 2 -8AN male aluminum fittings and 2 -8AN x 1/2" barb adapters. With the large -8AN fittings this cooler was designed primarily for engine oil applications, but also can be used for heavy duty transmission or fuel cooling.

The Atomic-Cool is a tried and true workhorse that can keep vital engine and transmission fluid temperatures under control under severe duty environments.

Made in the USA.

Specifications

• Cooler style: Plate & Fin
• Inlet size: 5/8"-18 o-ring female x -8AN male
• Fan size: 8"
• CFM: 500
• Amp draw: 4.8
• Width: 12-3/4"
• Height: 9-3/8"
• Depth: 4-5/16"
• Inlet dim: 8-9/16"
• Mounting: 11-5/8" x 4"
• Barb size: 1/2"

Features

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• High efficiency OEM style Plate & Fin cooler
• Clear anodized aluminum shroud
• 500 CFM reversible Tornado electric fan
• -8AN inlet size
• Cooler assembly includes fan mounted cooler, two -8AN fittings and two -8AN x 1/2" hose barb fittings
