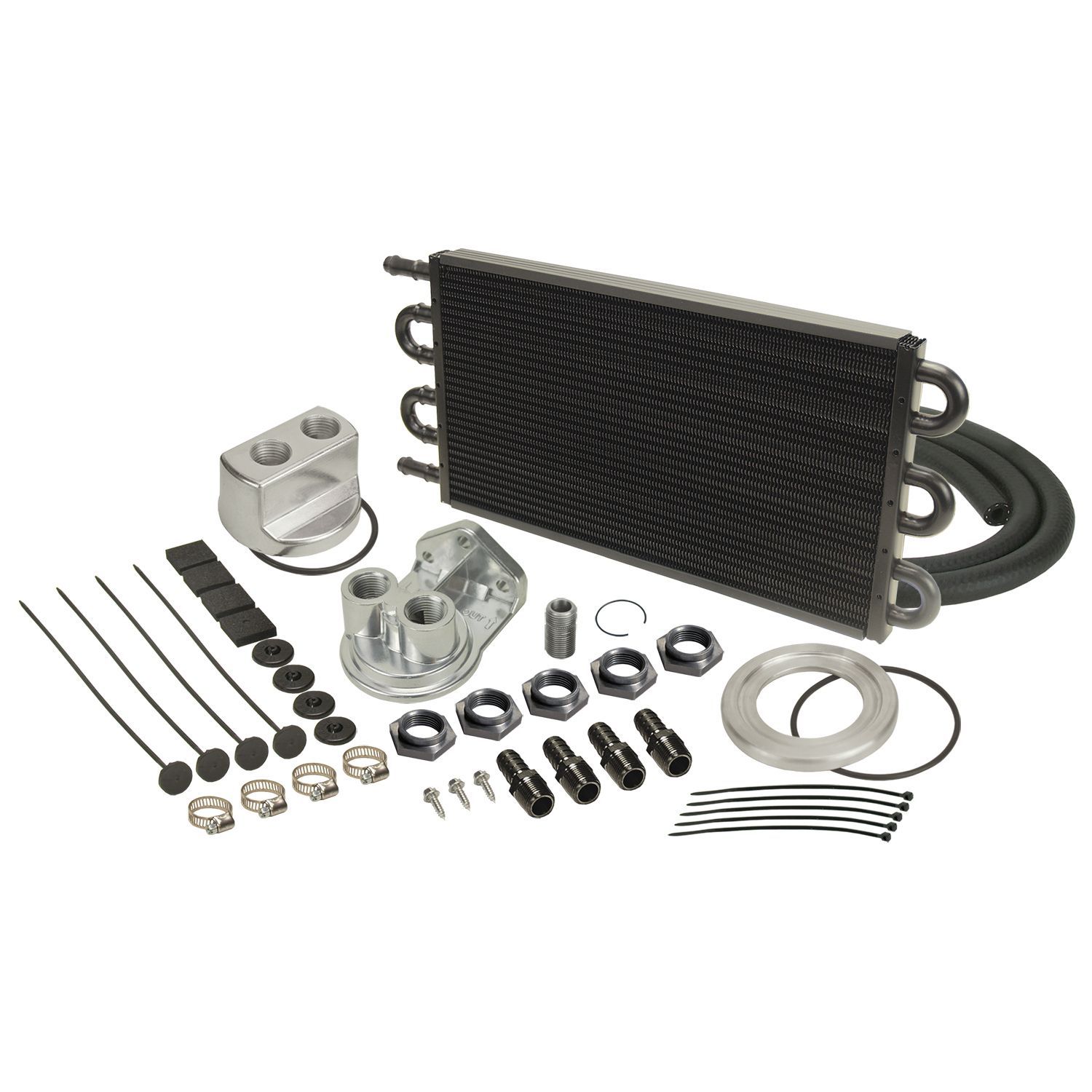

Derale 6 Pass Engine Oil Cooler + Universal Oil Filter Relocation Kit 15551

Derale 15551 This kit not only includes an engine oil cooler but a remote oil filter mount. This Tube & Fin oil cooler kit reduces oil temperatures to help extend the life of lower end components and oil life. It can also help to reduce coolant temperatures. This universal kit comes with a complete installation kit to install easily on most vehicle engines. Filter mount uses Fram PH8A Oil Filter or equivalent.

Specifications

Cooler style: Tube & Fin

Cooler construction: Copper tube and Aluminum fin

Cooler inlet size: 1/2" barb

Cooler width: 16-5/8"

Cooler height: 7-5/8"

Cooler depth: 3/4"

Cooler inlet dim: 6-1/4"

Cooler mounting: 13-3/4"

Spin-On Adapter type: J

Adapter thread size: 3/4"-16, 13/16"-16, 18 x 1.5mm, 20 x 1.5mm, & 22 x 1.5mm

Adapter thickness: 1-3/4" or 2"

Adapter inlet size: 1/2" NPT

Remote filter landing: 2-1/2", 2-3/4" or 3-1/2"

Remote filter thread size: 3/4"-16

Remote filter inlet size: 1/2" NPT

Hose size: 1/2"

Hose length: 10'

Features

Can reduce oil temperature up to 50'F

Helps reduce coolant temperature

Extends engine life

Includes ports-up filter mount (Fram PH8A equivalent filters)

6 pass Tube & Fin style cooler

Type J Spin-On Adapter fits most applications *see application guide for specific applications

Complete hardware kit included
