Derale 10" Straight Blade Reversible 625Cfm Electric Fan with Thermostat 16310
Derale 16310 10" Dyno Cool Straight Blade Reversible 625Cfm Electric Fan with Adjustable Thermostat.

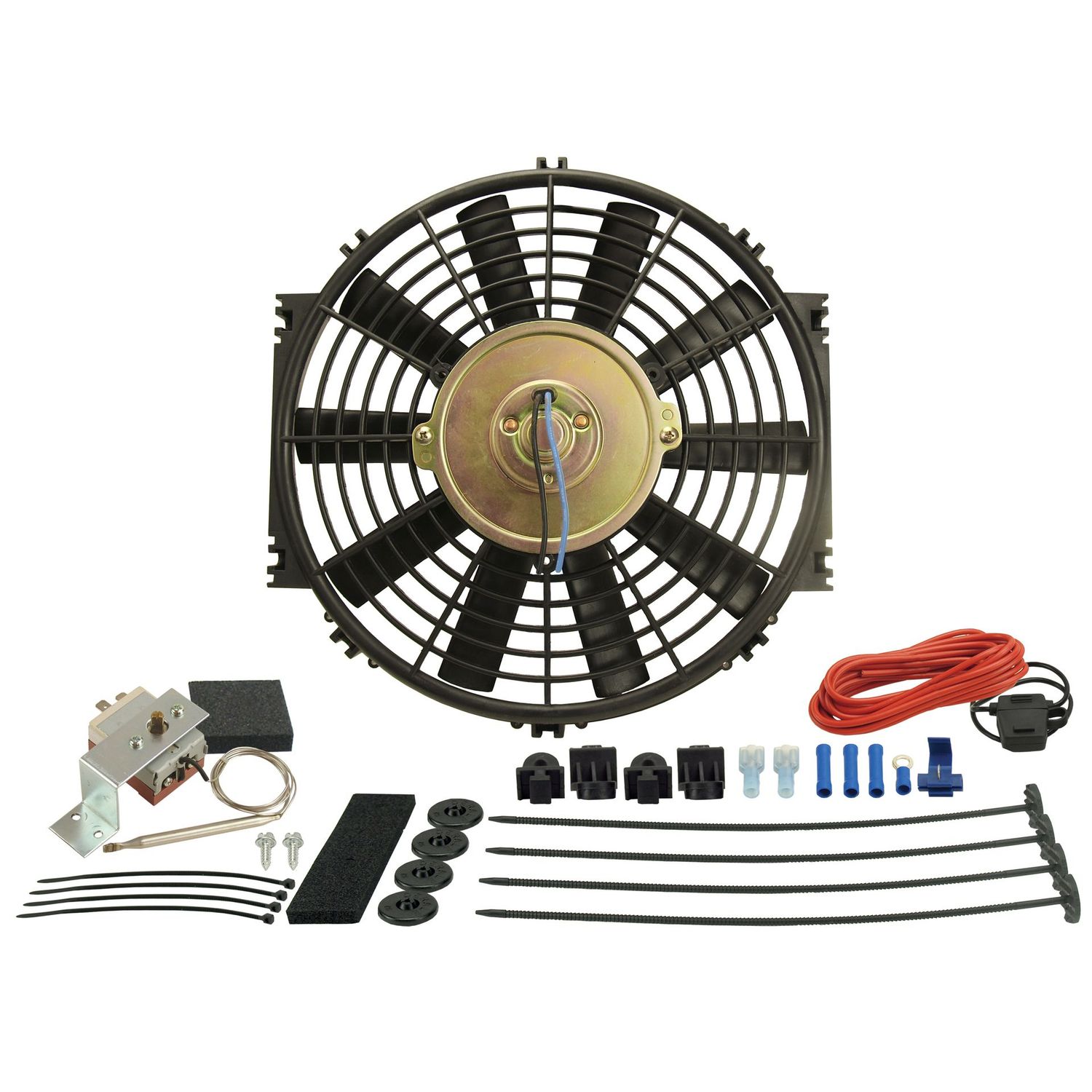

Our 10" straight blade electric fan moves 500 CFM at 0 static pressure, drawing only 6.4 amps. Kit includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32�F-240�F with turn off set at 10�F below turn on. Uses a capillary tube radiator hose probe design.
Features:
Ultra low profile design.
Straight fan blades.
500 CFM.
Reversible design - can be used as a pusher or puller.
Complete fan control kit includes 180� thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections.
Specifications:
Fan size: 10".
CFM: 500.
Amp draw: 6.4.
Width: 11".
Height: 11-1/4".
Depth: 1-1/8".
Overall depth: 2-3/8".
Mounting: 5-3/4".
Airflow: Puller (reversible).
