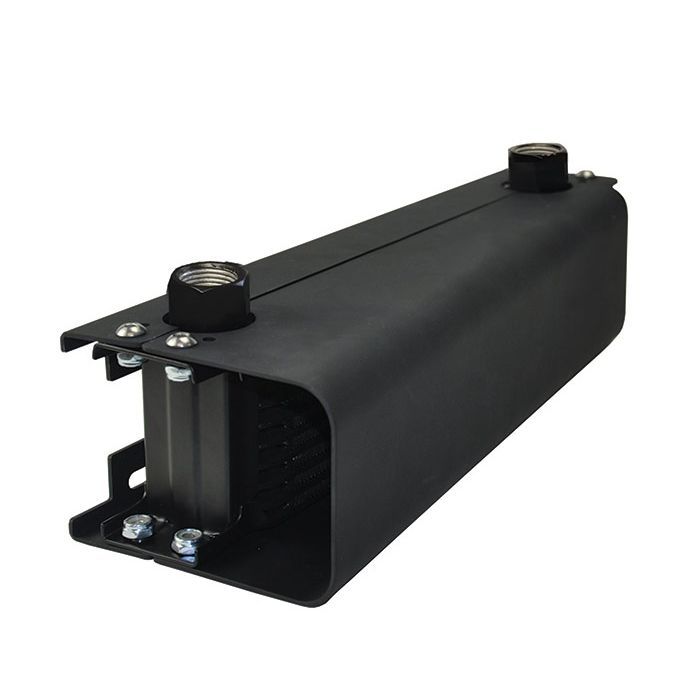

Derale 10 Row Stacked Plate Scoop Engine Transmission Power Steer Cooler 50100

Derale 50100 Derale Performance's Scoop Cooler is another industry exclusive, using Ram Air technology to force-feed air to their highly-efficient 10-Row Stack Plate Cooler. As expected from the Derale team, it can be used for a wide variety of cooling needs from engine and transmission to power-steering and fuel. Featuring a unique mounting bracket that sandwiches the cooler and the intake scoop, there are a wide variety of mounting options, all of which are designed to provide a clean, attractive and highly efficient cooler. Do not be fooled by its compact size; Derale's Scoop Cooler is a heavy-duty cooler in every sense of the word, with integrated turbulators running through each row. It's all-aluminum design is lightweight while the furnace-brazed construction is tested to withstand pressures up to 300 p.s.i., and GUARANTEED to 250 p.s.i. Cooler equipped with 7/8"-14 (-10AN) inlet/outlets. -6 AN, -8AN and -10AN fittings available, but sold separately.

Specifications

Cooler style: Stack Plate

Construction: Aluminum

Width: 13"

Height: 4"

Depth: 3 1/4" (Back) 5" (Front)

Inlet dim: 10"

Mounting: 10-1/4 Max x 2-3/16"

20,000 BTU's Per Hour

Features

Designed for engine, transmission, power-steering and fuel cooling

Unique mounting bracket sandwiches the cooler and the intake scoop

Several mounting options

Most efficient heat exchangers available

Furnace brazed aluminum construction

10 row cooler design

20,000 BTU's Per Hour
