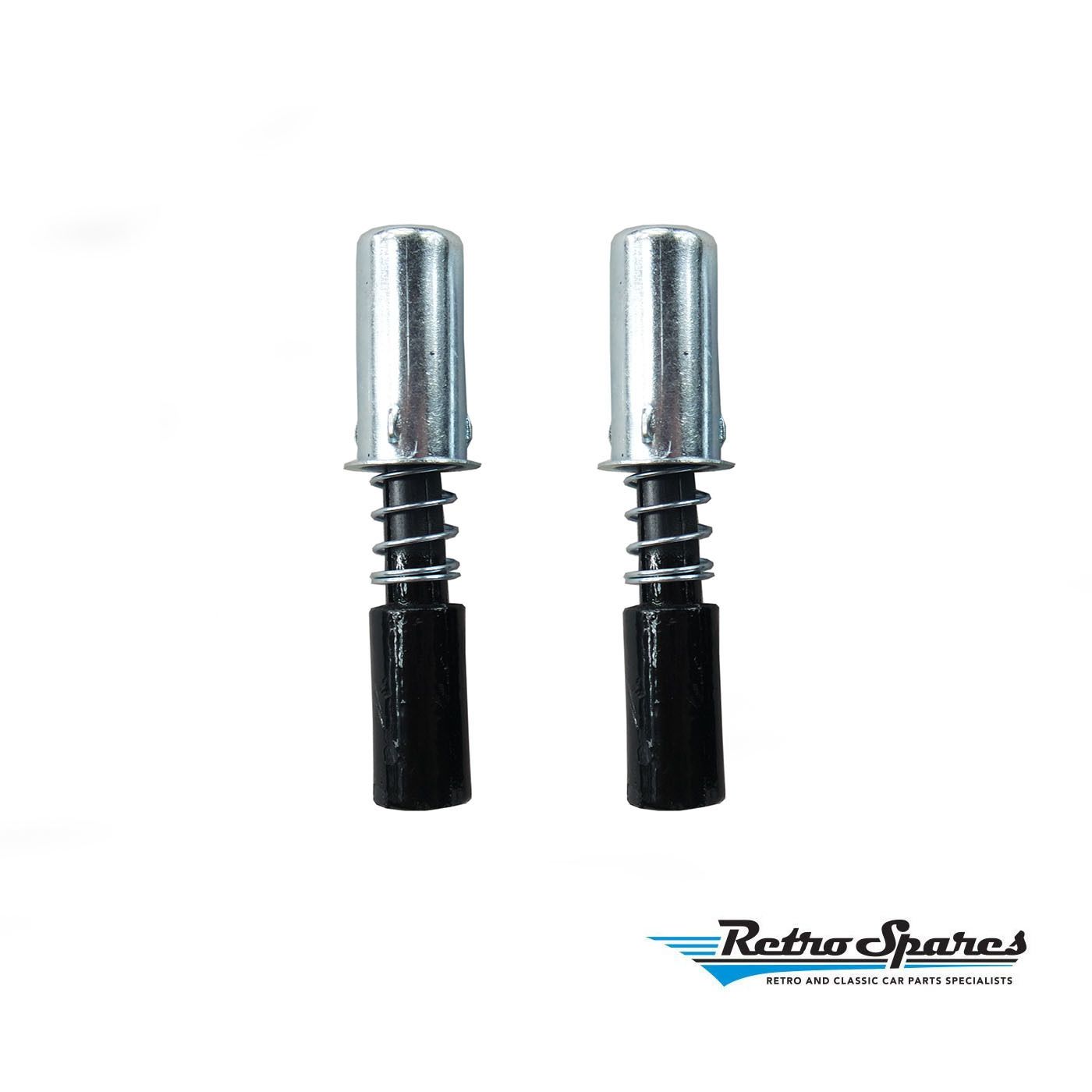

Courtesy Lamp Switches Pair for HOLDEN FE FC FB EK EJ EH HD HR HK HT HG HQ HJ HX HZ WB TORANA LC LJ GEMINI TX TC TD TE TF TG

Courtesy Lamp Switches Pair for HOLDEN FE FC FB EK EJ EH HD HR HK HT HG HQ HJ HX HZ WB TORANA LC LJ GEMINI TX TC TD TE TF TG

Replacement interior courtesy lamp door switches for Holden FE, FC, FB, EK, EJ, EH, HD, HR, HK, HT, HG, HQ, HJ, HX, HZ, WB, Torana LC and LJ, and Gemini TX, TC, TD, TE, TF and TG models.

These door-operated switches control the interior courtesy light when the vehicle doors are opened and closed. When a door opens, the switch activates the courtesy lighting circuit, allowing the interior light to illuminate. When the door closes, the switch returns to its closed-door position, allowing the light to switch off.

Ideal for replacing faulty, worn, corroded or missing original door switches that cause interior lights to stop working, remain illuminated or operate intermittently. Supplied as a pair, these replacement switches are suitable for classic Holden interior electrical repairs and restorations.

Features:

• Replacement door-operated interior courtesy lamp switches
• Suitable for selected Holden, Torana and Gemini models
• Supplied as a pair of 2 switches
• Designed to operate the interior courtesy lighting circuit when doors open and close
• Helps restore correct interior light operation
• Replaces faulty, worn, corroded, damaged or missing original switches
• Suitable for repairing intermittent or non-operating courtesy lights
• Ideal for interior electrical repairs and classic Holden restorations

Vehicle Compatibility:

Holden:

• Holden FE (1956–1958)
• Holden FC (1958–1960)
• Holden FB (1960–1961)
• Holden EK (1961–1962)
• Holden EJ (1962–1963)
• Holden EH (1963–1965)
• Holden HD (1965–1966)
• Holden HR (1966–1968)
• Holden HK (1968–1969)
• Holden HT (1969–1970)
• Holden HG (1970–1971)
• Holden HQ (1971–1974)
• Holden HJ (1974–1976)
• Holden HX (1976–1977)
• Holden HZ (1977–1980)
• Holden WB (1980–1984)

Holden Torana:

• Holden Torana LC (1969–1972)
• Holden Torana LJ (1972–1974)

Holden Gemini:

• Holden Gemini TX (1975–1977)
• Holden Gemini TC (1977–1978)
• Holden Gemini TD (1978–1979)
• Holden Gemini TE (1979–1982)
• Holden Gemini TF (1982–1983)
• Holden Gemini TG (1983–1985)

Kit Includes:

• 2 x Interior Courtesy Lamp Door Switches

Product Details:

• Product Type: Interior Courtesy Lamp Door Switch
• Application: Door-Operated Interior Lighting
• Position: Door Opening / Door Jamb
• Function: Activates the Interior Courtesy Light Circuit
• Quantity: 1 Pair (2 Switches)

Installation Notes:

Before installation, disconnect the vehicle's battery to prevent accidental short circuits while working on the courtesy light wiring.

Locate the existing courtesy lamp switch in the door opening or door jamb. Carefully remove the original switch, taking care not to damage the surrounding paintwork or electrical wiring.

Disconnect the existing wiring and inspect the electrical terminals for corrosion, loose connections or damaged insulation.

Compare the replacement switches with the originals to confirm the correct mounting arrangement, electrical terminals and switch operation.

Connect the existing wiring to the replacement switch and position it in the original mounting location. Ensure the switch is securely fitted and that its operating plunger moves freely.

Repeat the process for the second switch if replacing both sides.

Reconnect the battery and test the interior courtesy light by opening and closing each door. The light should activate when the door opens and switch off when the door closes, subject to the vehicle's original lighting circuit.

If the interior light still does not operate correctly, inspect the courtesy light bulb, wiring, fuse, earth connections and associated electrical components.

Please Note:

This listing is for one pair (2 pieces) of interior courtesy lamp door switches only.

Interior light assemblies, bulbs, wiring and additional electrical components are not included unless otherwise specified.

Suitable for selected Holden FE through WB, Torana LC and LJ, and Gemini TX through TG models with compatible door-operated courtesy light switch arrangements.

Switch mounting locations, electrical connections and courtesy lighting configurations may vary depending on the vehicle's model, body style, factory equipment and previous modifications.

Please compare the original switch shape, mounting arrangement and electrical terminals with the product images before ordering to confirm correct fitment.
