EVO II Climate Changer’ (540mm wide) Air conditioning with 12V Heating NO ENGINE WATER REQUIRED

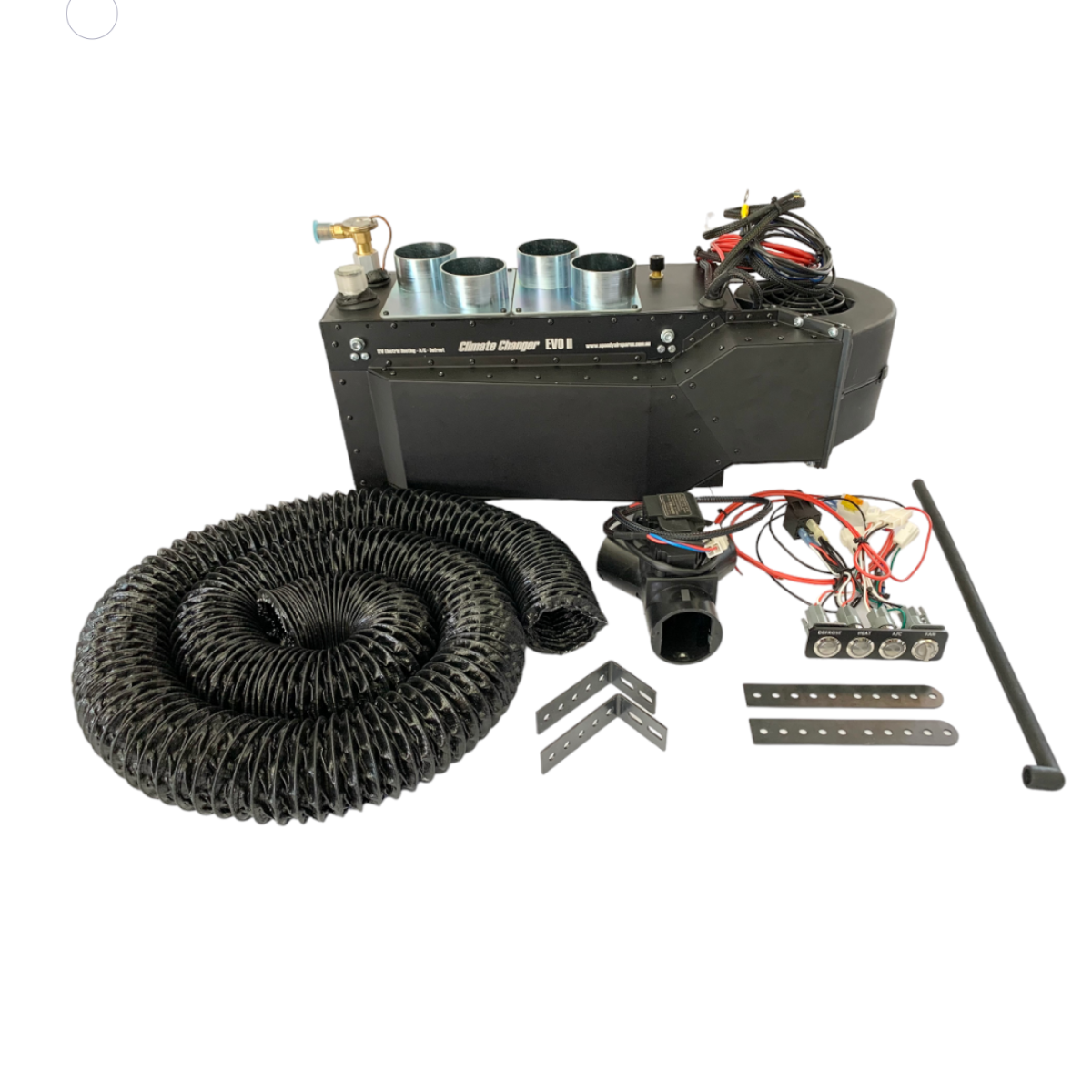

The Climate Changer EVO II
The Climate Changer series of units that we build are the only units available on the market that is equipped with A/C and 12v Electric Heating.
Designed and built in Bundaberg, Queensland
Anodized T5052 Aluminium construction
Please check dimensions carefully to see if it will fit behind your dash.
Unit dimensions
Width = 540mm (Not including mounting brackets in these dimensions)
Maximum height = 268mm from the top of the TX Valve to the lowest point of the sump
Maximum depth = 196mm Front to back
This unit has four 63mm outlets on the top of it.
The unit will come with a 4 button control panel with 19mm dia switches, Length 114mm x Height 32mm.
Controller will be to suit panel mounting with 4 x functions
1. FAN = 2 speed fan switch lights up with a white LED halo
2. A/C = A/C on button features a blue LED halo
3. HEAT = Heater button features a red LED halo (Electric heater draws 45A).
4. DEFROST = Defrost ‘Y’ Diverter features a yellow LED halo
Solid barrel fan airflow 580 m3/h
