1957 Chevrolet Full-Size Gen IV SureFit™ Complete Kit with 4-Vent Plenum

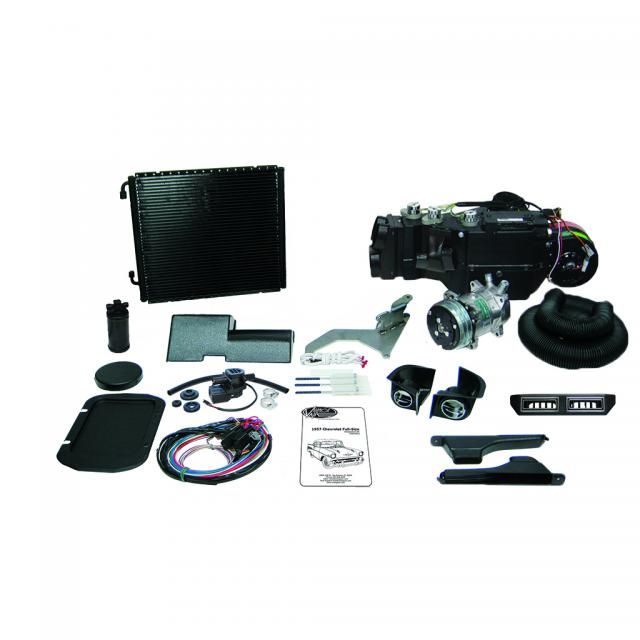

The Gen IV is Vintage Air's most powerful and intelligent climate control system. The Gen IV uses an exclusive fully electronic microprocessor control system that eliminates cables or vacuum connections. Separate high-capacity copper parallel-flow heat coil and aluminum plate-and fin-cooling coils provide outstanding performance and instant temperature adjustments.Additional features include variable blower speed and dash/floor/defrost blend.**Complete kits include everything in the evaporator kit plus all under-hood components such as compressor engine brackets condenser with brackets preformed refrigerant lines drier fittings hardware and installation instructions.

Fly-By-Wire fully electronic servo motor controls with no cables or capillary tube to route

Infinite just-right-temperature air blending

Infinite blower fan speed adjustment

High-volume dehumidified defrost mode

Separate high-capacity aluminum plate & fin cooling coil

Copper/brass CuproBraze™ parallel-flow heater coil

Mounts behind the dash

Uses your factory system controls with our patented Electronic Cable Converters

Stamped OEM-style firewall cover

Replacement molded glove box (reduced capacity)

NOTES:1. This kit requires an OEM, deluxe 4-lever control panel (Not included).2. This kit is designed for the original firewall and dash.3. Refrigerant lines are routed through the core support, and the drier mounts behind. These kits may be upgraded to include our popular polished ProLine compressor/alternator bracket.4. If using a cross flow radiator, see Condenser Kit # 03455-VCC.5. Some installations may require additional engine pulleys not included with kits. You must provide pulleys, V-belts, heater hoses and refrigerant.6. When retaining the original 265 or 283 V8 engine, it may be necessary to upgrade the harmonic balancer and pulleys. You will also need to upgrade from the generator to an alternator.7. SureFit™ systems may interfere with some OEM radios or in-dash speakers.

With no molded center vent, this kit allows the use of 4 individual louver locations.
