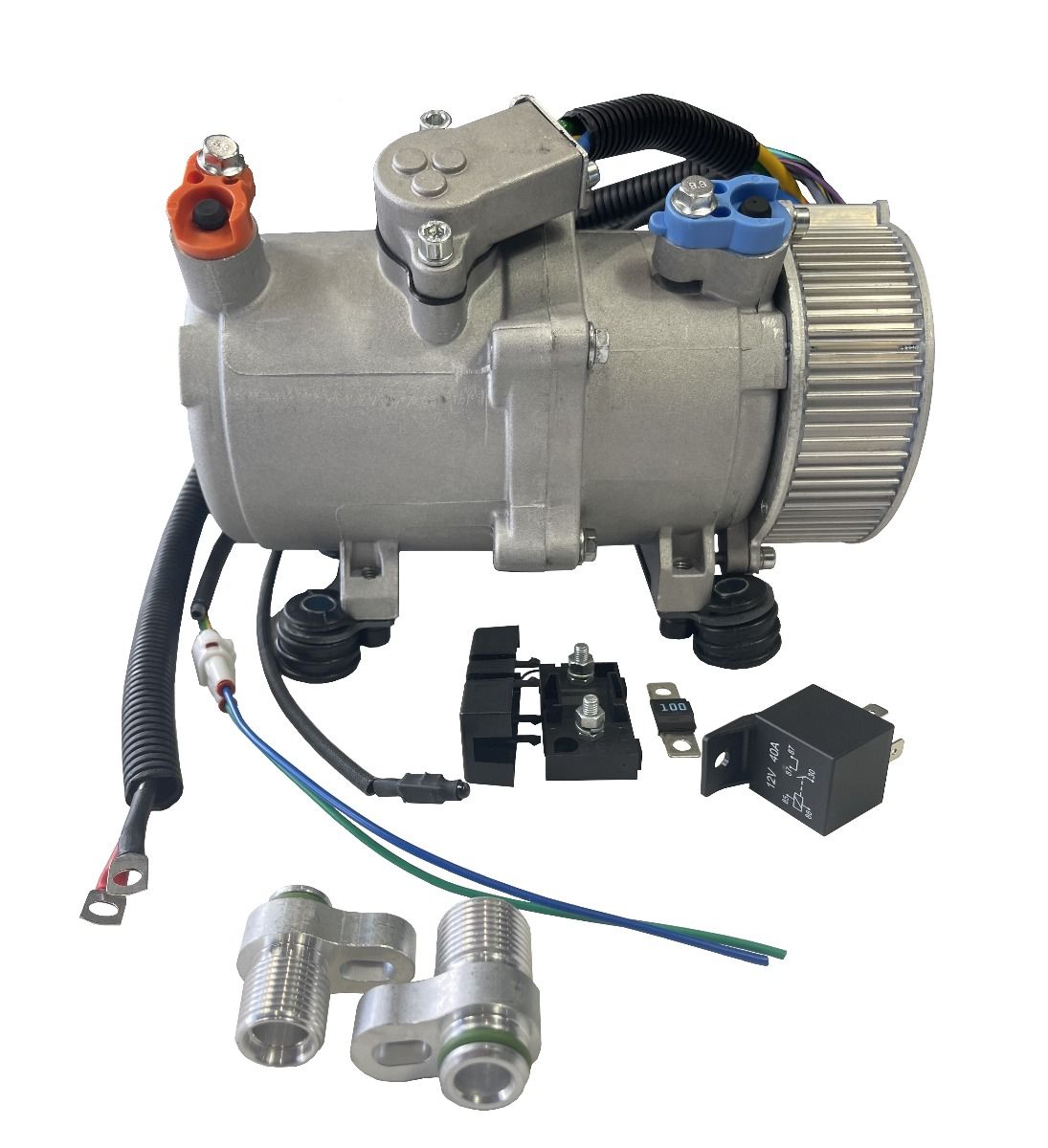

12V Fully Electric Compressor 21cc 50A Current Draw / 1800rpm R134a

12V Fully Electric Compressor 21cc 50A Current Draw / 1800rpm R134a

*NEW*

12V DC Electric Compressor R134a

This compressor can be mounted just about anywhere in your vehicle as there is no need for a belt or mechanical drive!

You can mount these compressors in an engine bay, a boot / trunk, under a tray of a ute / pickup or truck!

You will need a decent alternator with an output of at least 100A and up, to manage the 50 Amp current draw that this compressor will require at its full speed rated at 1800 rpm.

Comes with a set of Suction & Discharge pad to MIOR adaptors to allow the use of standard FOR screw on fittings.

Discharge is #8

Suction is #10



Controlling the compressor

There are two methods to control this compressor…

1. Using the vehicles air conditioning thermostat located in the factory evaporator box / under dash unit to trigger a mini relay. (Not included but can be supplied separately)



2. Using a speed controller (varies rpm from 1000 ~ 2000) and thermostat combination to trigger a mini relay (Not included but can be supplied separately)



Wiring diagram will be supplied either physically or by e-mail.



Powering the compressor

You will require the following items (We can supply these, please see our store or just ask us).

1. 70A Circuit breaker

2. Continuous duty solenoid

3. 8 B&S Cable per metre depending on where you mount the compressor

4. Mini relay



Overall compressor dimensions

Width 130mm

Length 235mm

Height 190mm



VERY IMPORTANT *COMPRESSOR HAS TO BE MOUNTED AS IN PHOTOS WITH THE MOUNTING POINTS OT THE UNDERSIDE OF THE COMPRESSOR, THIS CAN NOT VARY OTHERWISE COMPRESSOR WILL SUSTAIN DAMAGE OR FAIL*
